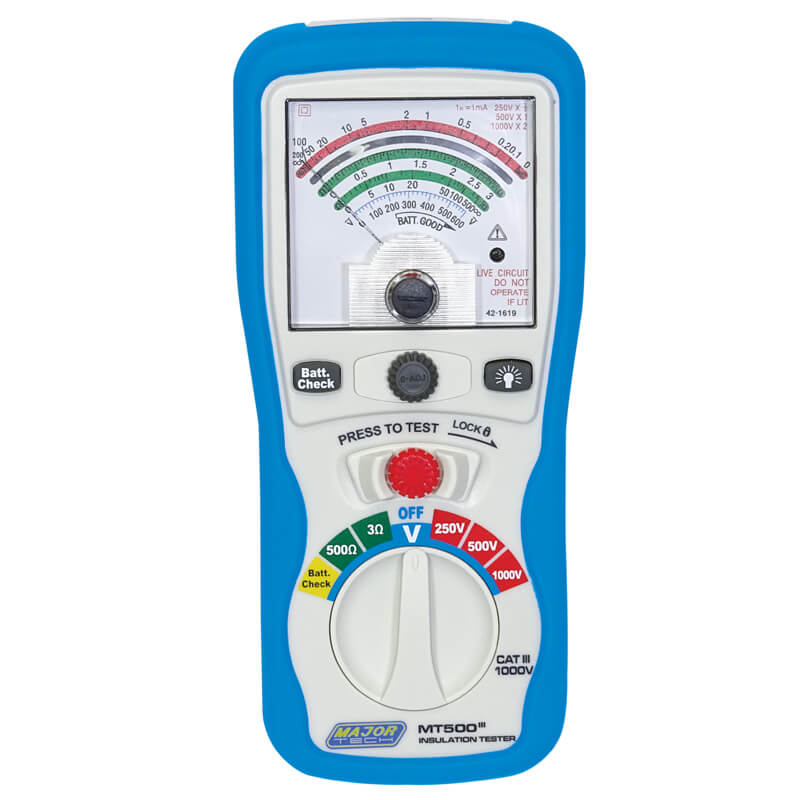

Insulation Tester Analogue MT500

The MT500 is a 1000V Analogue Insulation Tester rugged, compact and easy to use Insulation and Continuity Tester. The instrument offers three insulation test ranges: 250V, 500V and 1000V, a 3Ω continuity range and a 500Ω resistance range. This meter is not only equipped with a “Live Circuit Warning” but also displays the actual AC voltage measurements of the mains supply. The scale has a backlight which is ideal when working in dimly lit environments.

• Three test ranges 250V-500V-1000V
• 600V AC voltage range
• Live Circuit warning and buzzer
• Data Hold function
• 1mA output current on insulation test
• 200mA short circuit on continuity range
• Automatic discharge after test
• Front panel zero adjustment for test lead resistance
• Lock down Test Button for continuous use
• Hands free strap and magnet supplied as standard accessories
• Rubber overmould housing
• Illuminated display
