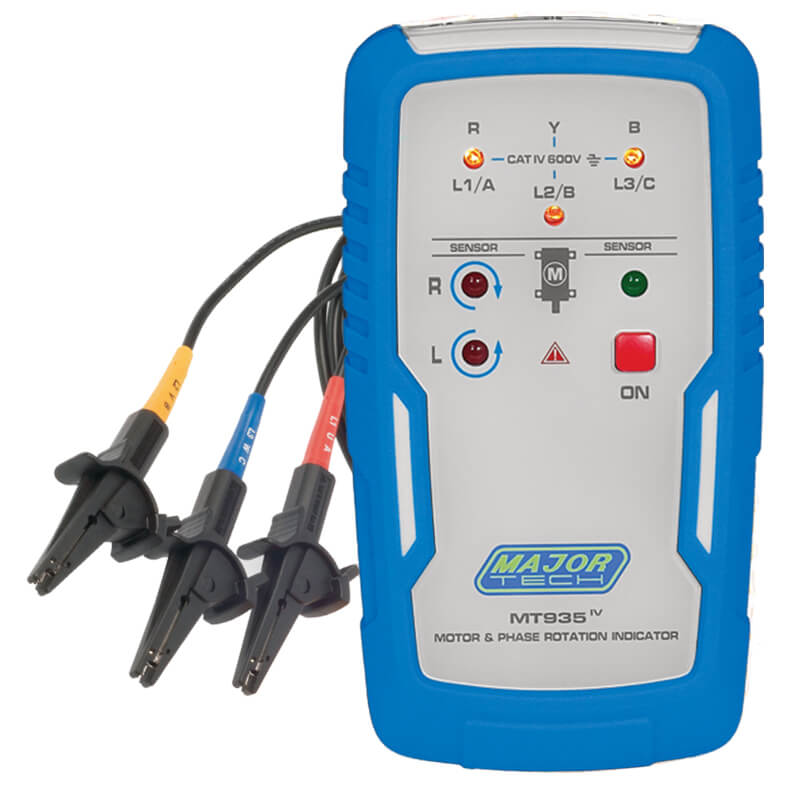

Phase Rotation and Dead Motor Meter MT935

The MT935 is a Dead Motor and Phase Rotation Meter compact and handheld, which is battery operated. The unit can be utilized on a 3 Phase powered system or on a 3 Phase unpowered motor without having to worry about damage to the tester. When used on a 3 Phase powered system the meter is a field indication instrument which displays all three phases by lighting up its corresponding lamp. It then displays the rotation for clockwise or anti clockwise on an LED. In 3 Phase motors it is possible to determine the motor connections U, V and W without mains voltage present, thus avoiding damage to pumps with reversed motor rotation. It operates from 1VAC to 400VAC.

• LED Indication
• Rotary field direction
• 3-Phase neon Indication
• Determines Motor Connection and magnetic Field Detection
• Double injection rubber housing
• Small lightweight and portable
• Voltage range from 1VAC to 400VAC
• Large size crocodile clips
