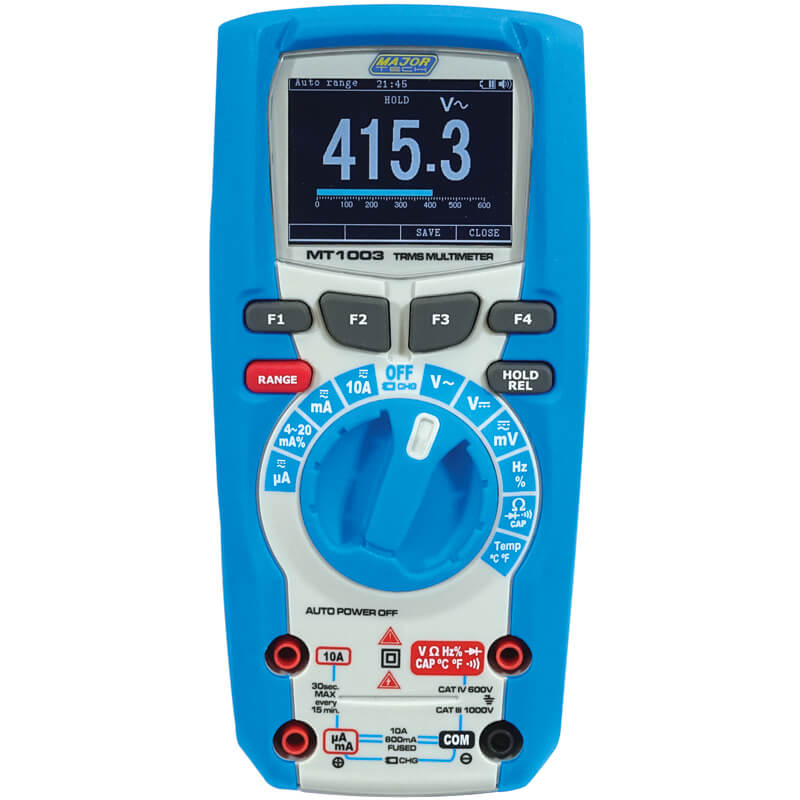

Multimeter 1000V AC/DC IP67 True RMS MT1003

The MT1003 Heavy duty True RMS Industrial Digital Multimeter with TFT colour LCD display, provides fast A/D converting sampling time, high accuracy, built-in data logging and Trend Capture features. It can trace any interruptions of the equipment and record events automatically unattended. Using this meter, it is easy to find and solve the problems while the internal memory keeps measurements stored. This meter provides safer measurements with the double moulded rubber housing design.

• CAT IV 600V and CAT III 1000V
• Large 6000 count 320 x 240 TFT colour LCD display
• Logging function with Trend Capture for easy review of logged data
• AC and DC Voltage 1000V
• AC and DC TRMS Voltage 1000V
• AC and DC Current 10A
• AC and DC TRMS Voltage 1000V
• Resistance 60Mꭥ
• Frequency 10MHz
• Capacitance 6000µF
• Temperature -40 to 1350°C
• Duty Cycle 99.9%
• Graph 100 Data review
• AC True-RMS measurements
• Setup function & Saves measurements
• A/D convert fast sampling time
• Peak capture (records transients as fast as 500µs)
• Min/Max/Average with Time stamp (records signal fluctuations)
• 4-20mA process loop measurements with % reading
