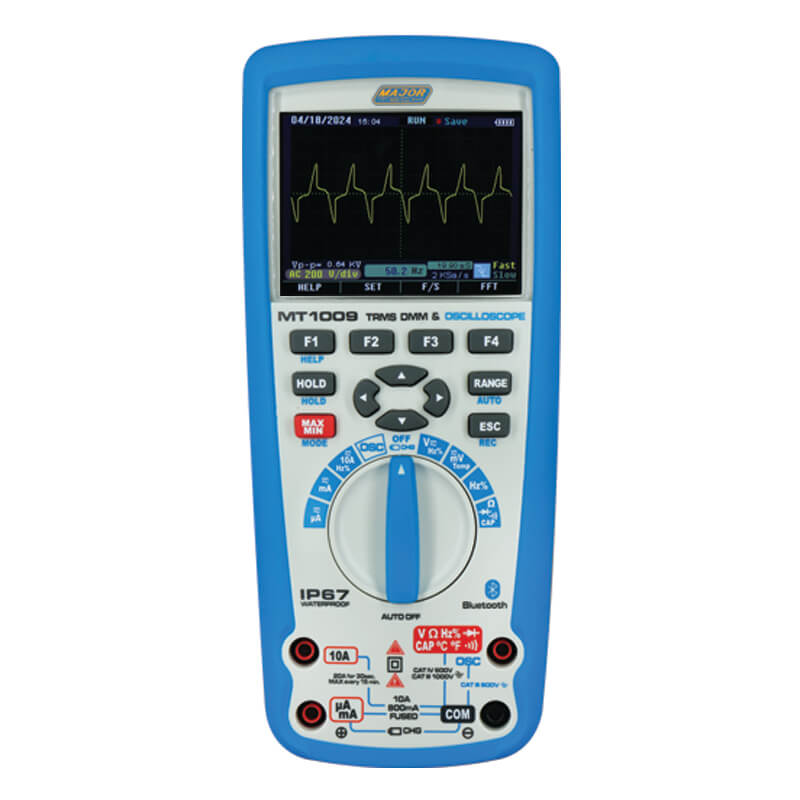

Multimeter 1500V True RMS Bluetooth and Oscilloscope IP67 MT1009

The MT1009 Oscilloscope and True RMS Multimeter has a fast sampling time, built-in data logging and Trend Capture features, plus it includes a 10MHz oscilloscope displayed on a colour screen. Using Bluetooth technology the captured data can be transferred to a computer for analysis of the datasheets. The oscilloscope function has a 10MHz bandwidth with a 50MS/s Real Time sample rate and cursors to assist the user with zoom in measurements – all displayed on a colour TFT display! With TFT colour display, this meter enables the user to trace and identify problems on equipment, and with the data logging & Trend Capture functions, it can be utilised as a standalone unit to log events!

The Oscilloscope is housed in a double moulded rubber casing with an IP67 waterproof design.

• CAT IV 600V and CAT III 1000V
• IP67 – Dust & Waterproof
• Large 50 000 Count 320 x 240 TFT colour LCD display/ Low pass filter
• AC and DC Voltage 1000V
• AC and DC TRMS Voltage 1000V
• AC Current 10A
• Resistance 50Mꭥ
• Frequency 10MHz
• Capacitance 10mF
• Temperature -50 to 1000˚C
• Duty Cycle 99.9%
• AC, AC + DC TRMS Measurements
• 10MHz / 50MS/s Bandwidth/ Real time sample rate
• Logging function with Trend Capture for easy review of logged data
• Bluetooth PC interface for easy data transfer & accuracy calibration
• Peak capture (records transients as fast as 250μs)
• Min/Max/Average with Time stamp (records signal fluctuations)
• Motor winding and low ohm (500) measurement range
• The Meterbox software supports Bluetooth products transferring the measured data to the customers’ smart phon
