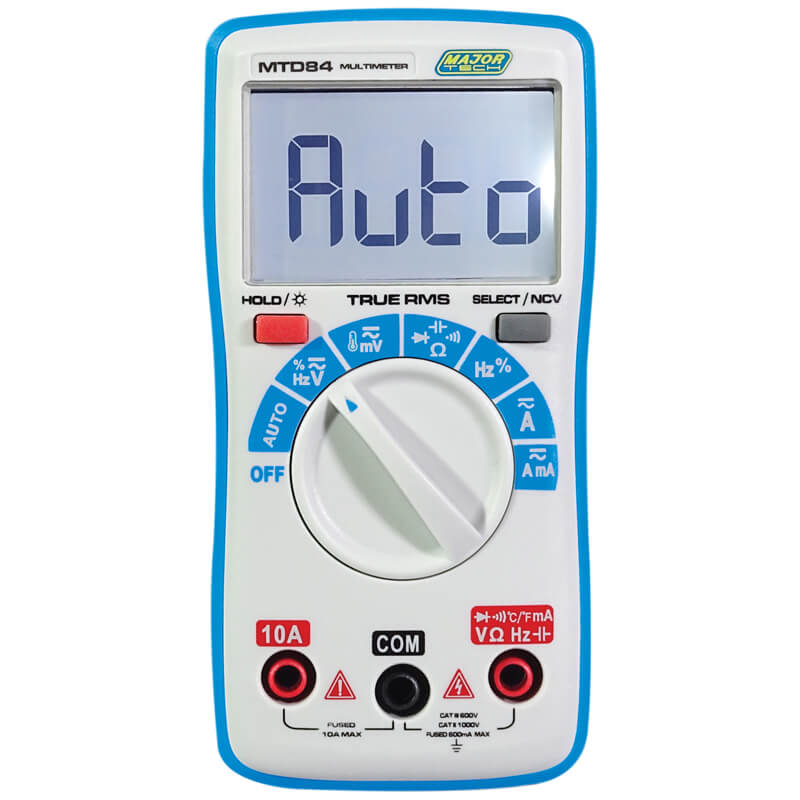

Multimeter DIY 1000V AC/DC Compact True RMS Auto Ranging MTD84

The MTD84 is a Compact True RMS Auto Ranging Multimeter with a 6000 count LCD backlit display. The Smart mode, “AUTO”, is a function that automatically identifies DC voltage, AC voltage, Resistance and continuity and automatically displays the measurements. There is a built-in Non-Contact voltage detector, by pressing the NCV button continuously the LCD displays “EF” and will display “—-“ when voltage is detected and the buzzer sounds. This meter meets the International Standard IEC 61010-1 CAT III 600V, and is ideally suited for everyday use by electricians, electronic technicians, students and DIY users. The meter has a built-in tilt stand for hands free convenience as well as low battery indication and auto power off.

• 6000 count with backlit LCD display
• Smart Mode automatically identifies DCV, ACV, Resistance and continuity
• Measures DC voltage up to 1000V and AC voltage to 750V
• Temperature measurement from -20⁰C to 1000⁰C
• Capacitance to 10mF
• Frequency to 10MHz
• Duty Cycle
• REL mode and Data Hold
• Auto Power Off
• NCV – Non-Contact Voltage Detector
