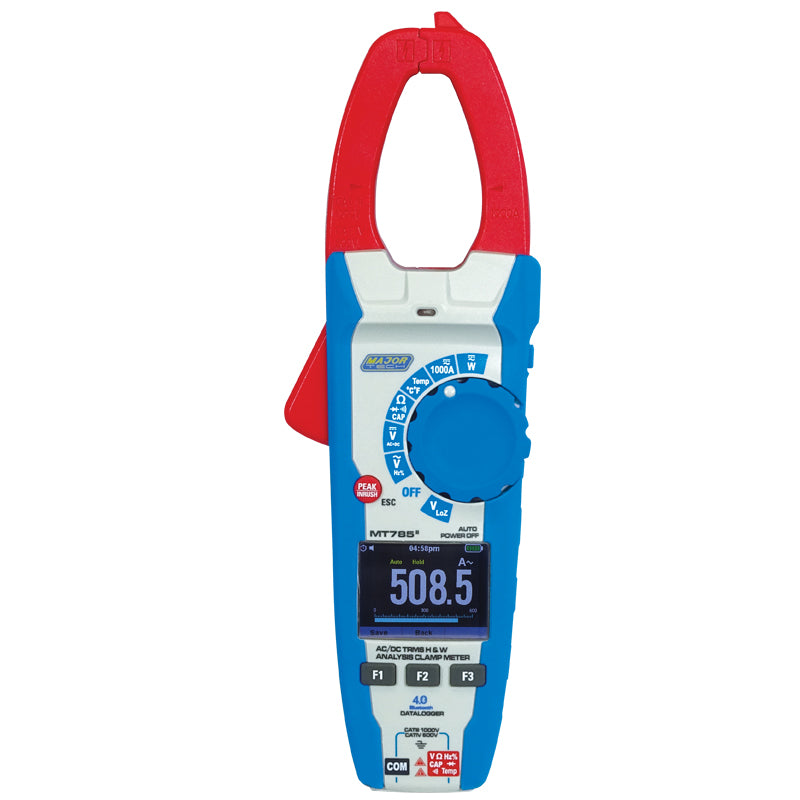

Clamp Meter 1000A AC/DC with H&W Analysis MT785

The MT785 is a CAT IV 600V, 6000 count True RMS H & W analysis clamp meter that measures up to 1000A AC/DC with an analogue bargraph indication on a TFT colour display. The MT785 simultaneously measures and displays Active, Reactive and Apparent Power and Energy and current harmonic analysis up to the 25th order with THD% calculation in a single phase. The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on. The meter has been designed to measures 1500V DC purposely for the Solar industry, 1000V AC, temperature, frequency, capacitance and resistance. The LowZ range function has a low pass filter to eliminate errors caused by "Ghost" voltages. The meter has a built in record and store function and displays trend charts, using the Bluetooth function the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings.

• 6000 count TFT colour LCD display
• Ø33mm Cable Clamp size
• Measurement of AC and DC current up to 1000A
• TRMS AC voltage to 1000V, DC voltage up to 1500V and AC+DC voltage TRMS measurements up to 1000V
• Active, Reactive, Apparent Power & Power Factor on single phase
• AC and DC Power measurements
• Energy measurements on single phase – Active, Reactive and Apparent
• Capacitance to 6000μF
• Trend Capture Function
• INRUSH Current Measurements
• AC Voltage and Current Harmonics (1 – 25) and THD% up to 75Hz (1 – 8 above 75Hz)
• LoZ – Low impedance mode prevents false readings due to “Ghost” voltage
• NCV – Non-Contact Voltage Detector
• Built-In Flashlight
• Continuity buzzer and Diode Test
• Peak Mode, Min/Max and Data Hold function
• Auto Power Off
