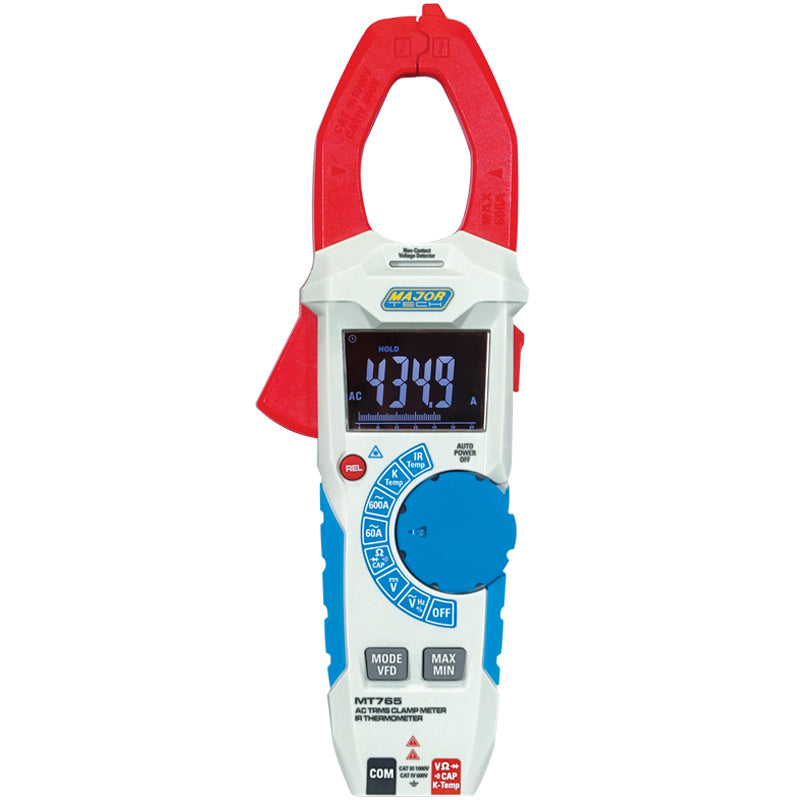

Clamp Meter 600A AC TRMS with Bluetooth MT765

The MT765 is a CAT IV 600V True RMS 600A AC digital clamp meter incorporating an Infrared Thermometer. This clamp meter has a large 6000 count negative LCD display that provides fast sampling times and high accuracy measurements. The IR Thermometer has a spot ratio of 4:1 and measures temperature from -30°C to 350°C, and there is a K-Type thermometer input for measurements up to 1000°C. The meter measures 1000V AC/DC, frequency, capacitance and resistance measurements. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative Mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing with a rugged design. This meter is a useful measuring tool for electricians, maintenance and HVAC environments.

• 6000 count negative LCD display
• Ø33mm Cable Clamp size
• Measurement of DC voltage and AC voltage up to 1000V
• Capacitance to 10mF
• Temperature measurement from -20°C to 1000°C
• IR Temperature Spot Ratio 4:1 & measurement from -30°C to 350°C
• VFD – Variable Frequency Drive voltage value
• NCV – Non-Contact Voltage Detector
• Built-In Flashlight
• Continuity buzzer and Diode Test
• Max, Min and Data Hold function
• Auto Power Off
